Rolling Design Fence Mesh Welding Machine 60-100 Times / Min Production Capacity

Name: Rolling Design Fence Mesh Welding Machine 60100 Times Min Production Capacity
Brand: JingLian
Price: 1 USD

Rolling Design Fence Mesh Welding Machine 60-100 Times / Min Production Capacity Manufactures

Brand Name : JingLian

Model Number : ZWJ--08

Certification : IATF16949:2016

Place of Origin : Hebei, China (Mainland)

MOQ : 1 Set

Payment Terms : T/T, L/C

Supply Ability : 30 Sets/month

Delivery Time : 25 Days

Packaging Details : Nude packing

Production Capacity : 60-100times/min

Weight (KG) : 4500

Width : 3-5ft

Power (kW) : 5.5

Mesh size : 10*10mm-200*200mm

After-sales service provided : Engineers available to service machinery overseas

Contact Now

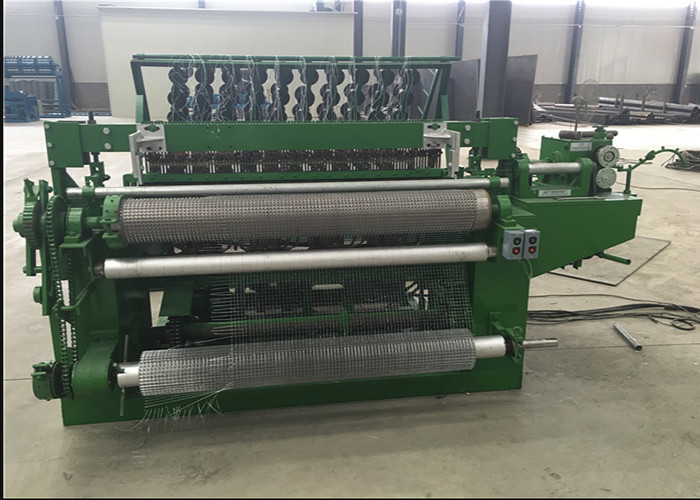

New design rolling welded wire mesh panel machine for fence

This machine adopts electrical synchronous control technique, both welding time and cent-control welding is composed of digital and integrated electric circuit. this operation is accurate, it has stable function, and without welded tracks. not only welding speed is fast but also it is easy to learn and operate, Step motor controls fallen wefts atructure and drawing materials are automatic, so it is even and accurate the edge of mesh is regular, it is unnecessary to slice the side. Drawing mesh adopts the device with the elastic tension link and fixing mesh, it is easy to regulate mesh hole and mesh size is rather accurate, welding aperture could also adjust randomly within range.

Type1: roller mesh
Wire diameter: 0.6--1.5mm Mesh size: 1/2",1",1 1/2",2" Width:2000mm Motor:2.2KW Transformer:60KVA*5 Speed: 90--100 rows/min Spare parts: wire shelf, wire axis machine, mesh repairing machine, welded pot two pcs, pressure spring two pcs, strong magent

Type2: for roller mesh
Wire diameter:1.0--2.2mm Mesh size:1",2",3" Width: 2000mm Motor: 3.0KW Transformer:60KVA*6 Speed: 70-80rows/min Spare parts: wire shelf, wire axis machine, mesh repairing machine, welded pot two pcs, pressure spring two pcs, strong magent

Type3: for panel mesh
Wire diameter: 1.0--2.5mm Mesh size:50mm Width:1200mm( for this type the maximum width is 1200mm) Motor: 3.0KW Transformer: 70KVA*5 Speed: 60-80 rows/min Spare parts: whole set wire payoff, electric cutter. Mesh repairing machine.welded pot two pcs, pressure spring two pcs, strong magent

Type4: for panel or coil
Wire diameter: 1.5--3.0mm Mesh size: 50mm-200mm Width: 2000mm Motor: 4.5KW Transformer: 120KVA*4 Speed: 60-70rows/min Spare parts: wire straighten and cutting machine, wire payoff,electric cutter, mesh roller,welded pot two pcs, pressure spring two pcs, strong magent

Rolling Design Fence Mesh Welding Machine 60-100 Times / Min Production Capacity
